Details & Specifications
Specifications
Engine style 4-stroke,Single-Cylinder, Water-cooled
Displacement 311.4
Horse Power 15.2KW ( 7000rpm)20.4HP
Valve Configuration OHV
Compression ratio 10.5:1
Fuel Delivery System Fuel Pump+Vacuum Diaphragm Carburetor
Choke System Two Chokes System /Automatic
CHASSIS
Fuel capacity 11L (2.5 Gallon)
Top speed 75km/h
Dry weight 365kg
Gross weight 385kg
Drive Type 4X2
Drive System Shaft-Drive
Transmission Constantly Variable Transmission

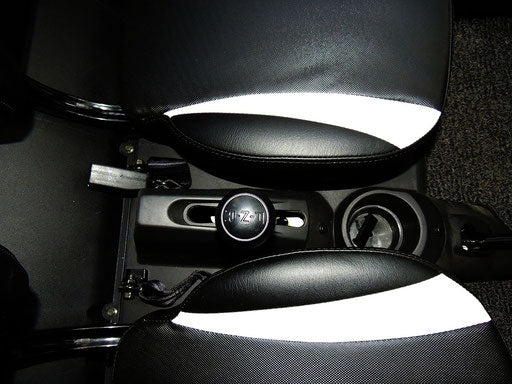

Gear Selection F-N-R

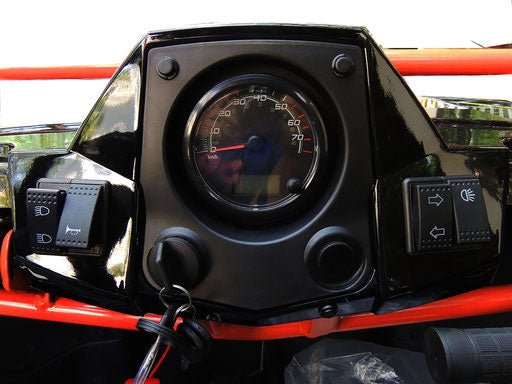

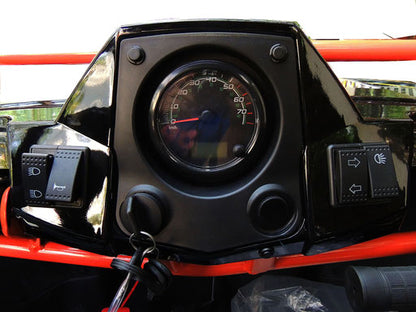

Speed/Fuel meter LED Meter
Battery 12AH 12V
Rear Lights Brake Lights & Left/Right Signal lights
Ignition system D.C.D.I
Suspension Front Double A-arm Suspension

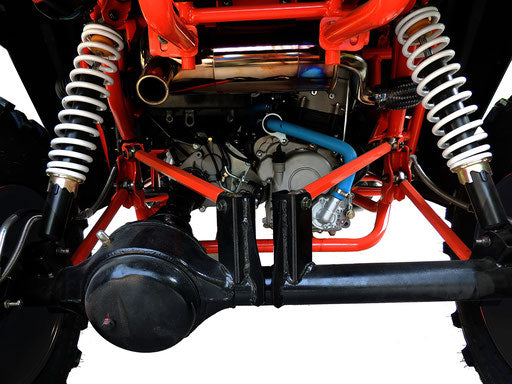

Suspension Rear Fang power 4-Link® bar Rear Suspension
Brakes F/R "220MM F/R Dual Hydraulic Disk"
Front/Rear Tread 1250mm ( 49.2 in) / 1150mm ( 45.2in)
Front & Rear tire size 25x8-12 / 25x10-12
Front & Rear rim size 12x6 / 12x8
Wheelbase 1980mm (78in)
Packing size 2290*1300*815
Ground clearance 300mm(11.8in)
Vehicle dimension (L×W×H) 2700x1450x1660mm(106x57x65)

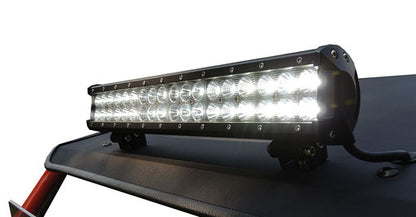

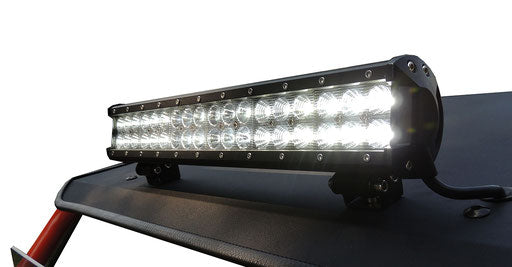

Optional : Windshield/LED roof light
